50 KN VTOL JET ENGINE CALCULATIONS

The jet engine calculations are done with NASAs EngineSim program for students.

Main jet engine design parameters are:

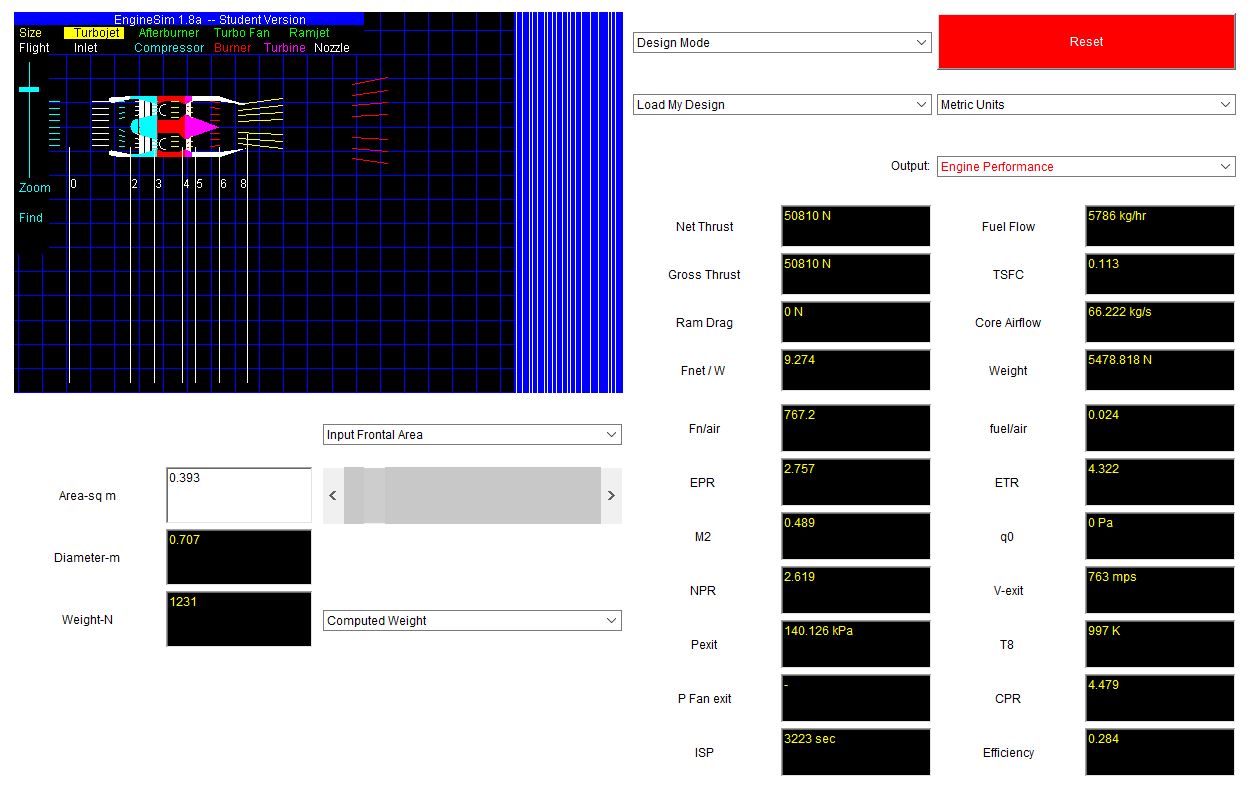

  • Inlet area: 0.393 m^2 (4.23 ft^2)
  • Compressor stages: 3

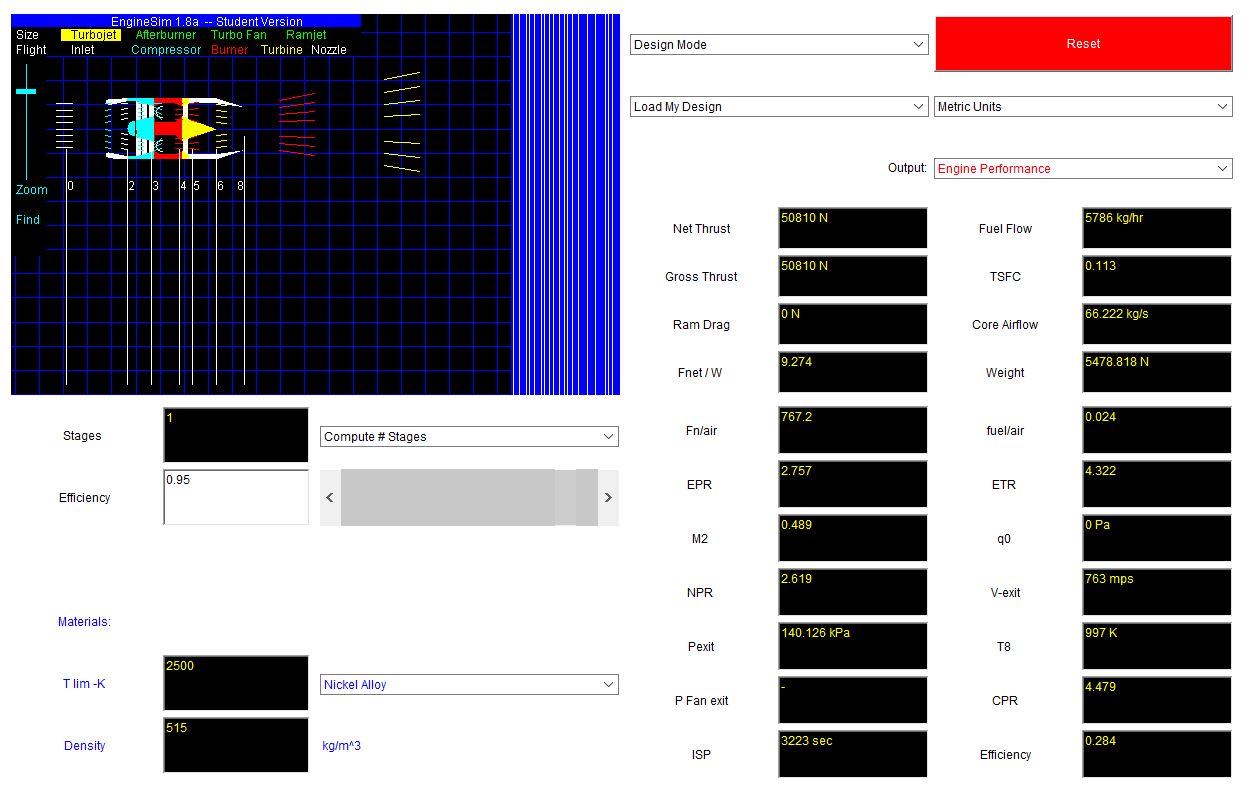

  • Turbine stages: 1
  • Compression rate: 4,479
  • Pressure after the compressor: 4,38 bar (63.53 psi)
  • Temperature after the compressor: 187 C (369 F)
  • Speed: 0 km/h

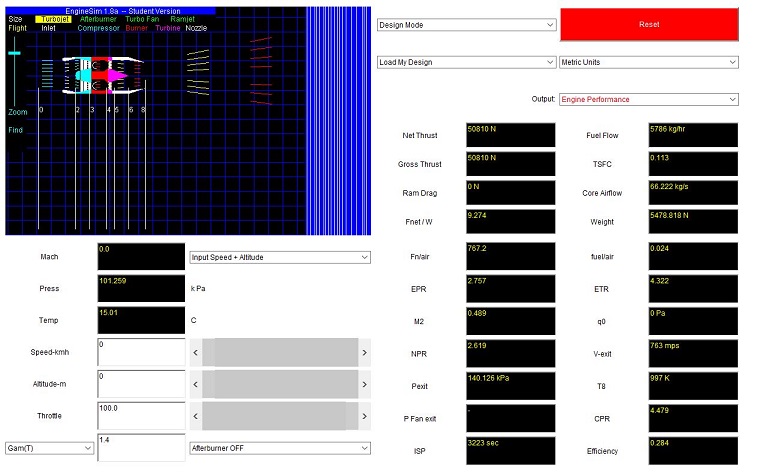

    • Flight

    Size

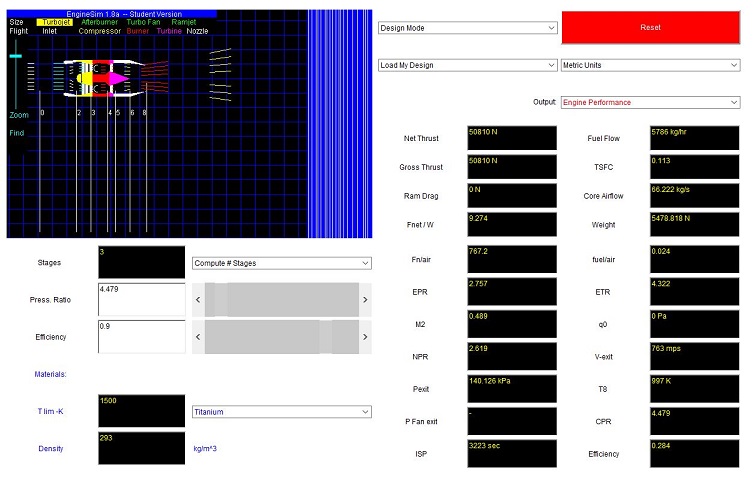

    Compressor

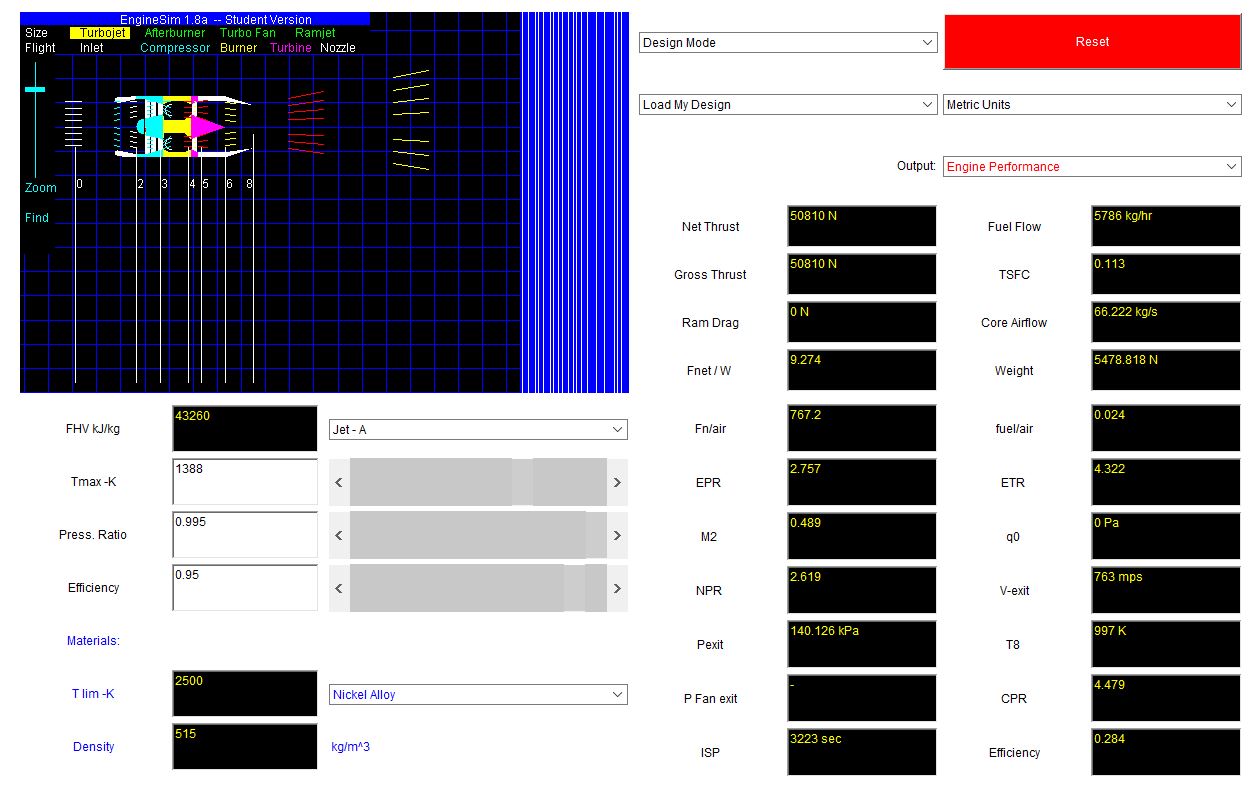

    Burner

    Turbine

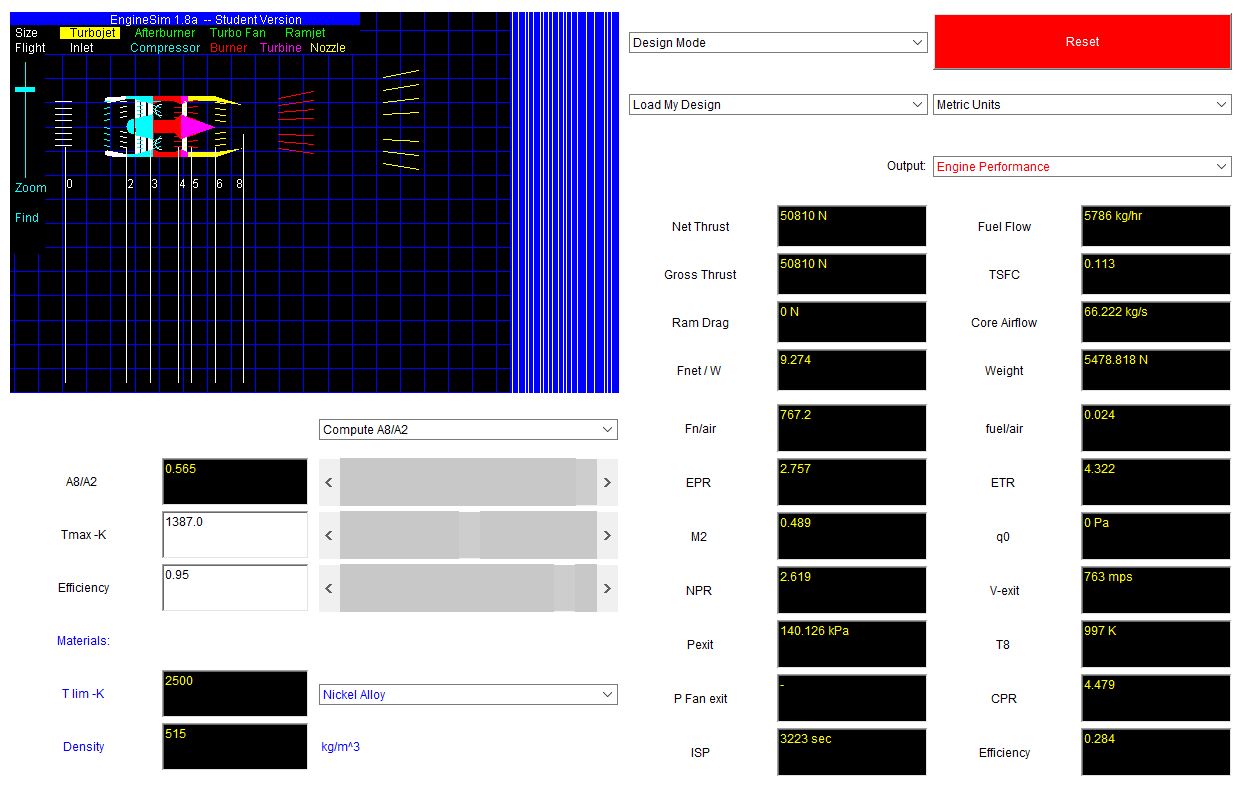

    Nozzle

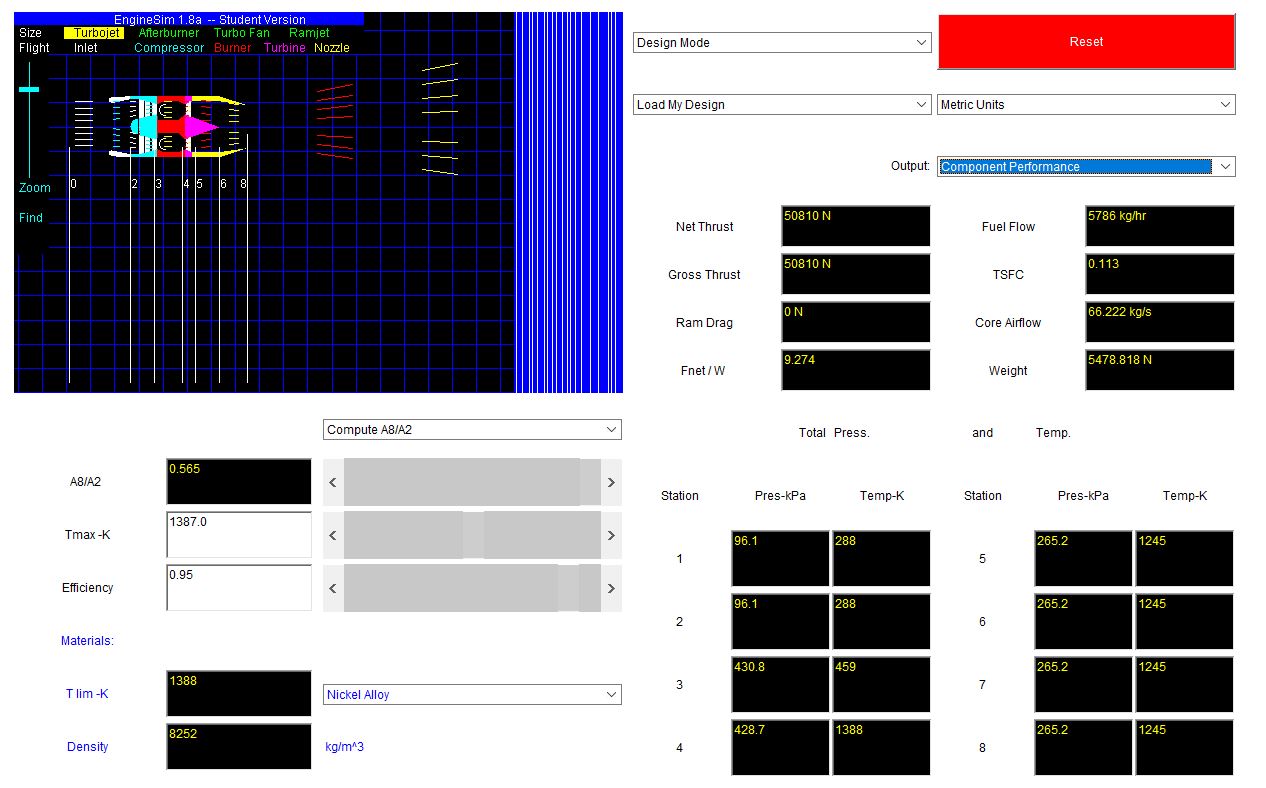

    Component Performance
