50 KN VTOL JET ENGINE STATOR ASSEMBLY

In the stator assembly there are used small diameter ultra high precision bearings in order to have grease lubrikation. Oil lubrication would be more complex and therefore heavier. Small diameter bearings means also challenge to get fuel and electricity for the combustor, because these are needed to go trough the bearings.

Stator Assembly Drawing

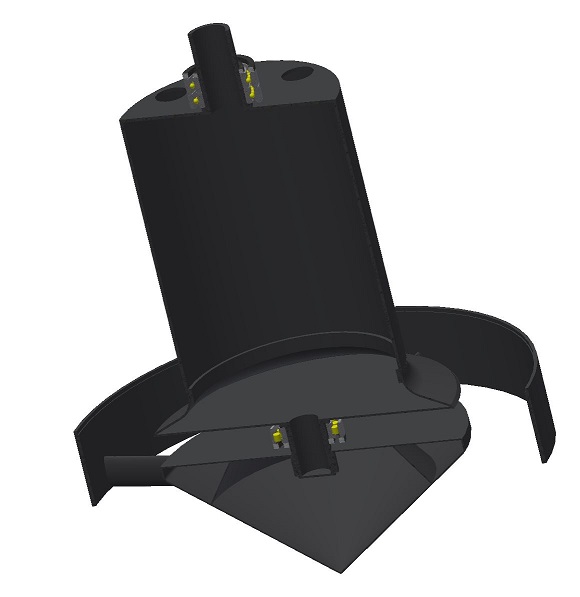

Stator Assembly Picture

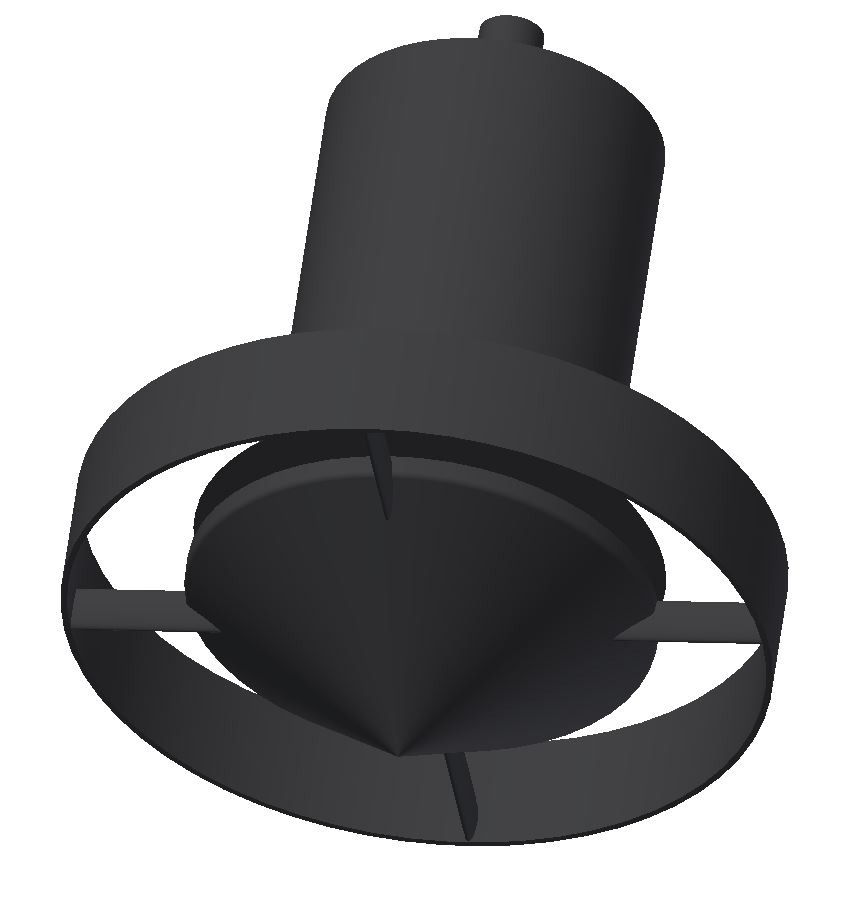

Stator Assembly Picture2

Stator Frame

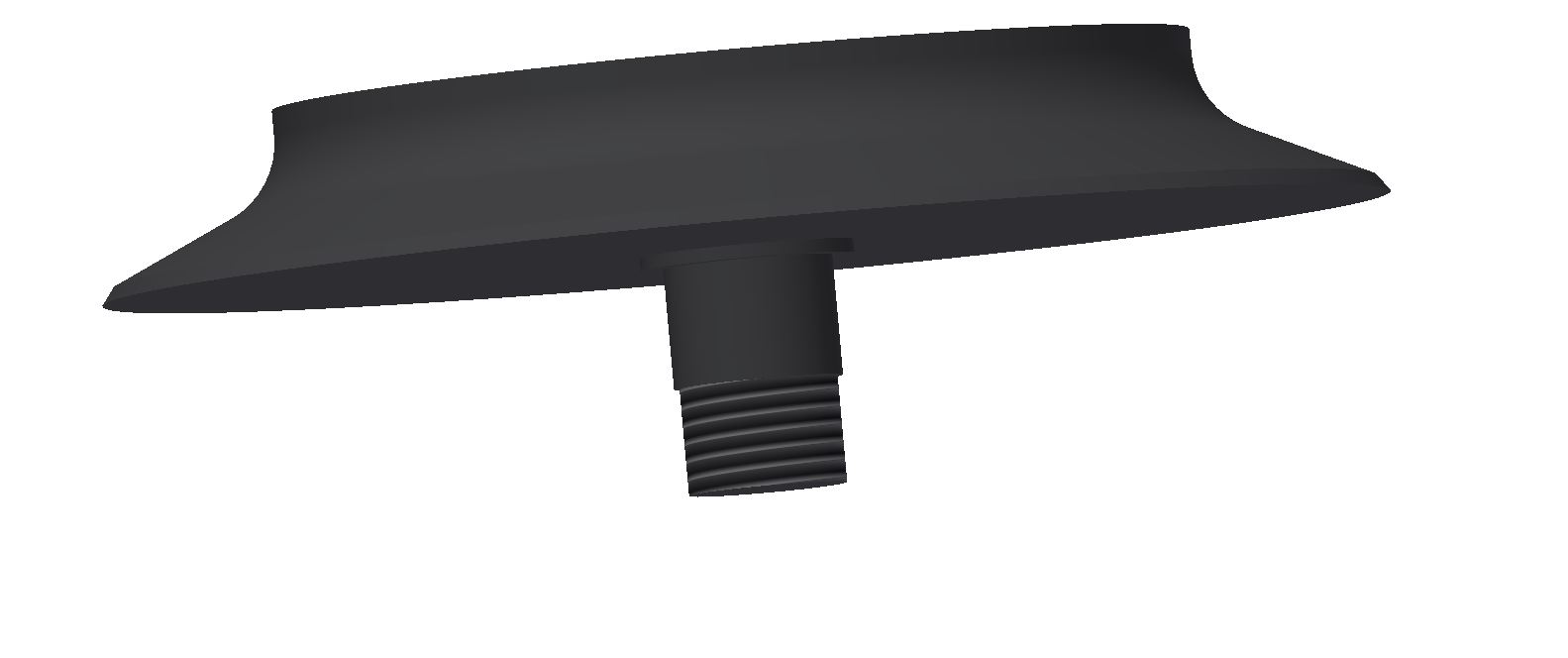

Stator Lower Part

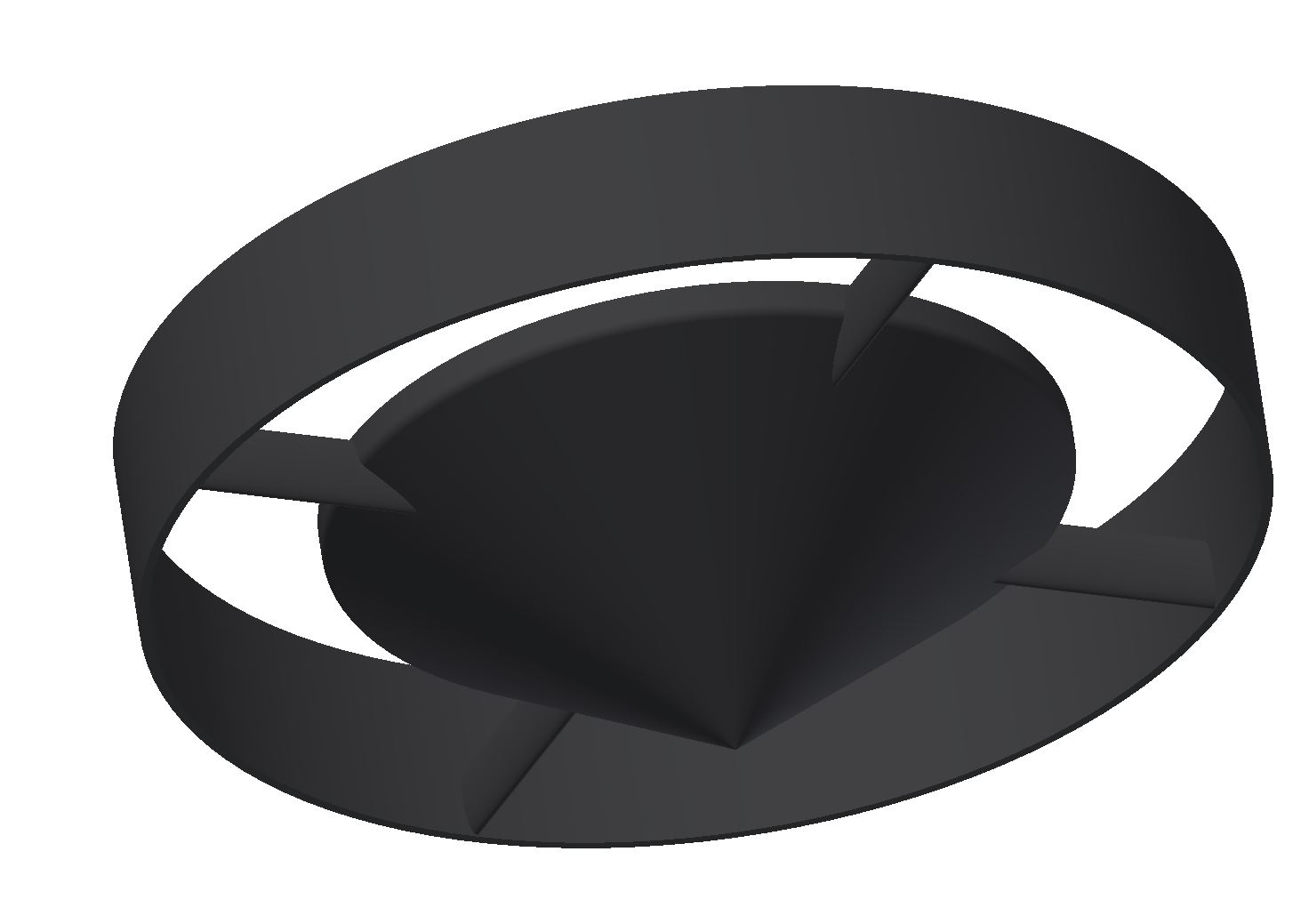

Stator Cone
